| Model name |

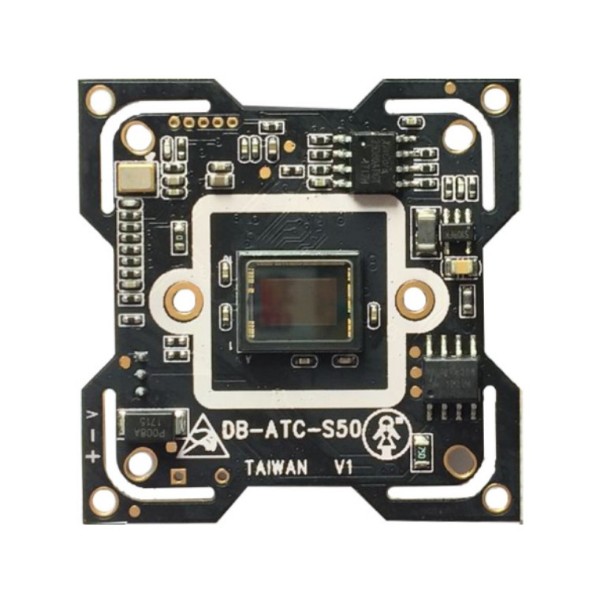

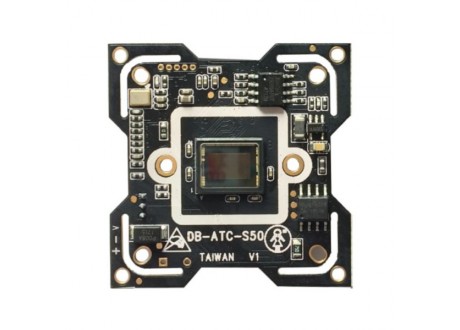

DB-ATC-S50 |
| Image sensor |
1/2.9” Progress CMOS Sensor |
| Effective pixels |
3096(H) x 2218(V), 6.87M |
| Unit cell size |
1.62um (H) x 1.62um (V) |
| S/N Ratio |
More than 50dB |
| Resolution |
3096 x 2196 5MP |
| OSD Language |
ENGLISH / China |
| Video Output |
AHD/TVI/CVI/ANALOG |
| Shutter Speed |
1/30(1/25) ~ 1/10,000 sec |
| White Balance |
Auto / User / Push / Hold |
| Backlight Compensation |
0 ~ 16 |
| AGC |
1 ~ 5 |
| Day & Night |
Color/BW/ AUTO / EXT |
| HLC |
OFF / ON |
| Motion OSD |
OFF / ON |
| Mirror/Flip |
OFF / ON |
| Power Input |
DC12V±10% |
| Power Consumption |
MAX 1W (90mA) without LED |
| Operation Temperature/Humidity |
-20℃ ~ 60℃ |
| Dimension |
32(H)X32(V)mm, PCB 1.6T,4 Layers |
| Weight |
5g |
