| Model name |

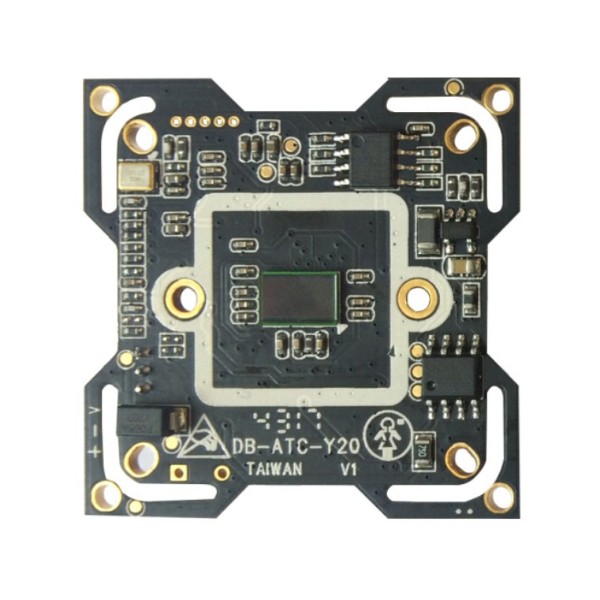

DB-ATC-Y20 |
| Image sensor |
1/2.7” Progress CMOS Sensor |
| Effective pixels |
1932(H) x 1088(V), 2MP |
| Unit cell size |
3.0μm (H) x 3.0μm (V) |
| S/N Ratio |
More than 65dB |
| Resolution |
FHD: 1920x1080 @60fps(MIPI) |
| OSD Language |
ENGLISH / 中文 / SPANISH / FRENCH / 繁体中文 / RUSSIAN / ITALIAN / KOREAN / PORTUGUESE / POLISH |
| Video Output |
AHD/TVI/CVI/ANALOG |
| Shutter Speed |
1/30(1/25) ~ 1/10,000 sec |
| White Balance |
Auto / User / Push / Hold |
| Backlight Compensation |
0 ~ 16 |
| AGC |
1 ~ 5 |
| Day & Night |
Color/BW/ AUTO / EXT |
| HLC |
OFF / ON |
| Motion OSD |
OFF / ON |
| Mirror/Flip |
OFF / ON |
| Privacy Masking |
AREA1 / AREA2 |
| Power Input |
DC12V±10% |
| Power Consumption |
MAX 1W (70mA) without LED |
| Operation Temperature/Humidity |
-20℃ ~ 60℃ |
| Dimension |
32(H)X38(V)mm, PCB 1.6T |
| Weight |
5g |
